Over the years I’ve seen evidence of a series of Hand Planes made by Ohio Tools. These plane are similar to their typical line of planes but have a #32X (where the X designated the size) for a size designation.
Some of this is guess work and speculation at this time but here is what I think the sizes are.

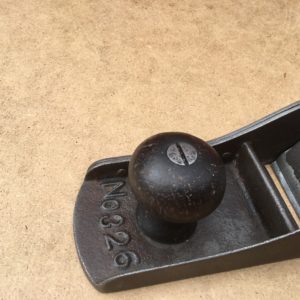

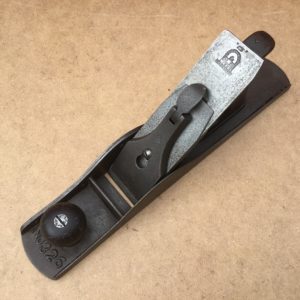

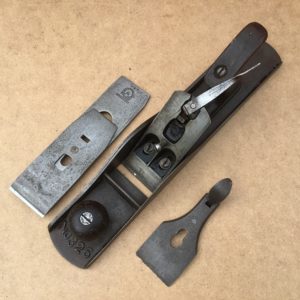

Ohio Tools #321 – #01 ?? Have not seen evidence of one Ohio Tools #322 – #02 ?? Have not seen evidence of one Ohio Tools #323 – #03 Ohio Tools #324 – #04 9 in. long and about 2 1/3 in. wide, 2″ cutter Ohio Tools #325 – #04 1/2 Ohio Tools #326 – #05 Ohio Tools #326 1/4 – #05 1/4 it’s the same length as the #05 but the iron is 2 1/8″ (remember Ohio #05 1/4 is different than Stanley’s) Ohio Tools #326 1/2 – #05 1/2 plane is 15″ long cutter is 2 5/16″ wide Ohio Tools #327 – #06 18″ long, 2 3/4″ wide and has a 2 3/8″ blade. Ohio Tools #328 – #07 Ohio Tools #329 – #8
So far I have found no documentation for these planes. They are somewhat scarce but do come up in auctions and on ebay once in a while.
Although many of the early Ohio Tools Hand Planes had the toe screw on the tote, even on the smaller sizes, all planes observed in the 300 series do not have the toe screw, even the larger sizes.
Ohio Tools #0120 Block Plane
Ohio Tools #0120 Block PlaneOhio #0120 (with red “japanning”) The Red Japanning would most likely put this plane 1900-1905.This is a harder to find Ohio Tools block plane in this good of shape. You often find the gea...
More on the Ohio Tools —>
The Ohio Tools Work Book—>
A beautiful maroon japanned Ohio Tools #04 smoother. The japanning is original. The gorgeous rosewood has been refinished. The plane has been sharpened and tested.
...
Ohio Tools #04 Smoother
See my sharpening notes for Ohio Tools like this one --->.
A nice example of an early Ohio Tools #o4C smoother. It has been cleaned and sharpened. Ready for you right out of the box.
Note this plane has a very fine mouth...
Ohio Tools #04C Smoother
See my sharpening notes for Ohio Tools like this one --->.
A nice example of an early Ohio Tools #o4C smoother. It has been cleaned and sharpened. Ready for you right out of the box.
...
Ohio Tools #05 Jack Plane made for woodworking. There is not much collector value left, but as a woodworking tool, this plane can shine. Priced to get into your hands, and ready to use right out of the box. It's sharpened with a camber for rough work._x000D_\n_x000D_\nIt...
More on the Ohio Tools —> _
The Ohio Tools Work Book—>
There is not a whole lot to tell beyond the pictures. Obvious front knob replacement screw and repaired tote.
A very nice Jack plane for the woodworking shop. Sharpened for smoothing or ...
Ohio Tools #06 Fore Plane With a replacement Hock High Carbon Tool Steel (O1) Blade and Chip breaker (Hock #BBS238)
Original Iron and chip breaker are shown
The Hock blade is as it came out of the package.
The plane has been restored and...
Ohio Tools #07 Marks Patent Jointer
More information on this Ohio Tools Plane
It doesn't matter if you're an Ohio Tools collector or just looking for a jointer that may a bit of a conversational piece, this fits either.
The plane has been stripped...
Ohio Tools #08 Jointer
More on the Ohio Tools —>
The Ohio Tools Work Book—>
It's been dismantled, cleaned, sharpened and tested. Nothing more, nothing less.
Pictures should tell the story. Some beautiful rosewood. Original japanning in acc...
Ohio Tools #099 Combination Plane. This is either parts or a project plane. It's been completely disassembled (even the pesky little spur) and cleaned and oiled. The rosewood was waxed. I don't believe the short rod is original.
This is Ohio Tools...
Ohio Tools 5 1/4 Jack Plane
This is a pretty rare hand plane, unfortunately it came to me in pretty bad shape. It's been completely restored. It has a 2 1/8" wide blade (see the whole #5 1/4 story here )
It has a 2 1/8" blade which made it...
Ohio Tools Marks Patent #04 Smoother
Click here for some more Ohio Tools History
This plane is stamped with the Edward Marks’ 8-20-07 Patent frog patent date. It has the frog seat from the patent, but an adjustment screw has been added to it. The a...
O hio Tools Marks Patent Smoother with Consolidated Tool Works Iron. This blade is Probably not original to the plane.
More on the Marks Patent --->
This plane has been sharpened (note some minor pitting on the iron so the ruler trick was employed)...
